I. Project Overview & Core Information of the 7.5 kVA 13.8 kV Dry-Type CPT Package for US Industrial Plants
This solution is explicitly customized by Qingdao Hengfengyou Electric Co., Ltd. to support a distribution grid retrofitting and upgrading project for a large-scale localized industrial park in the United States. The project involves the bulk procurement of 300 units of medium-voltage single-phase dry-type control power transformers (CPT). These units are deployed to supply power to control loops for instruments, PLCs, and relay protection devices located inside 13.8 kV MV distribution rooms and complete control enclosures. They serve as core ancillary components for North American industrial power distribution assemblies. Given the large equipment volume and high batch monetary value, mandatory and rigorous criteria are imposed regarding product safety certifications, high-voltage insulation performance, moisture and short-circuit resistance, American-standard structural hardware, and cross-border export delivery lead times.
II. Technical Specifications & Reference Standards for the 7.5 kVA 13.8 kV Dry-Type CPT
1. Applicable Standards
UL 5085-1, UL 5085-2: Standard for Low Voltage Transformers - Part 1: General Requirements / Part 2: General Purpose Transformers (North American Safety Standards for Control Transformers)
CSA C22.2 NO. 66.1, CSA C22.2 NO. 66.2: Low Voltage Transformers (Canadian Electrical Equipment Standards)
IEEE Std C57.13: IEEE Standard Requirements for Instrument Transformers / Standard General Requirements for Liquid-Immersed and Dry-Type Distribution Transformers (Insulation Dielectric Test Specifications)
NRTL (Nationally Recognized Testing Laboratory): General Safety Testing Regulations for North America
NEC / ANSI: General Electrical Design Codes for 60 Hz Industrial Power Distribution Systems in the United States
2. Basic Operating Conditions
Operating Environment: Indoor US industrial facilities characterized by high dust levels, volatile ambient humidity, and operational conditions subject to lightning strikes and switching overvoltages.
Power Frequency Standard: 60 Hz
Ambient Operating Temperature: -20°C to +40°C (-4°F to 104°F)
Installation Method: Fixed floor-mounting inside enclosures; supports crane hoisting into position.
Delivery Documentation: A complete set of UL/CSA/NRTL compliance certificates, bilingual (Chinese-English) specification sheets, full factory routine test reports, and installation/O&M drawings must be supplied alongside the shipment. All equipment must be brand new, manufactured after 2026, covered by a 5-year comprehensive warranty, with a design lifespan of $\ge$ 25 years.
3. Key Technical Parameters

Parameter Item	Core Technical Specifications
Transformer Type	Control Power Transformer (CPT)
Structural Configuration	Dry-type, Epoxy Resin Vacuum Cast
Number of Phases	Single-Phase
Rated Frequency	60 Hz
Rated Capacity (per unit)	7.5 kVA (7,500 VA)
Primary Rated Voltage (Line-to-Line)	13,800 V
Primary Insulation Class	15 kV Class
Primary Power-Frequency Withstand	95 kV (BIL equivalent up to standard)
Secondary Output Voltage	120 V
Winding Material	100% Pure Copper
Insulation Thermal Class	Class H (180°C)
Rated Temperature Rise Limit	80°C
Tapping Configuration	No-tap (De-energized tap changer omitted)
Cooling Method	Air Natural (AN)
Frame Material	Heavy-Duty Galvanized Steel
Installation Structure	Heavy steel base mounting, equipped with 2 × Φ1.12 inch lifting holes as standard
Dimensions (per unit)	17 inches (L) × 9.5 inches (H) [Approximate layout placeholder]
Net Weight (per unit)	130 lbs

4. Mandatory Product Test Items

Full dielectric insulation withstand testing compliant with IEEE C57.13
Full-wave lightning impulse high-voltage test
Chopped-wave lightning impulse high-voltage test
Winding DC resistance, turn ratio, and polarity/phase verification
Mechanical short-circuit withstand performance validation
Enclosure sealing and anti-moisture integrity verification
Temperature rise load type tests

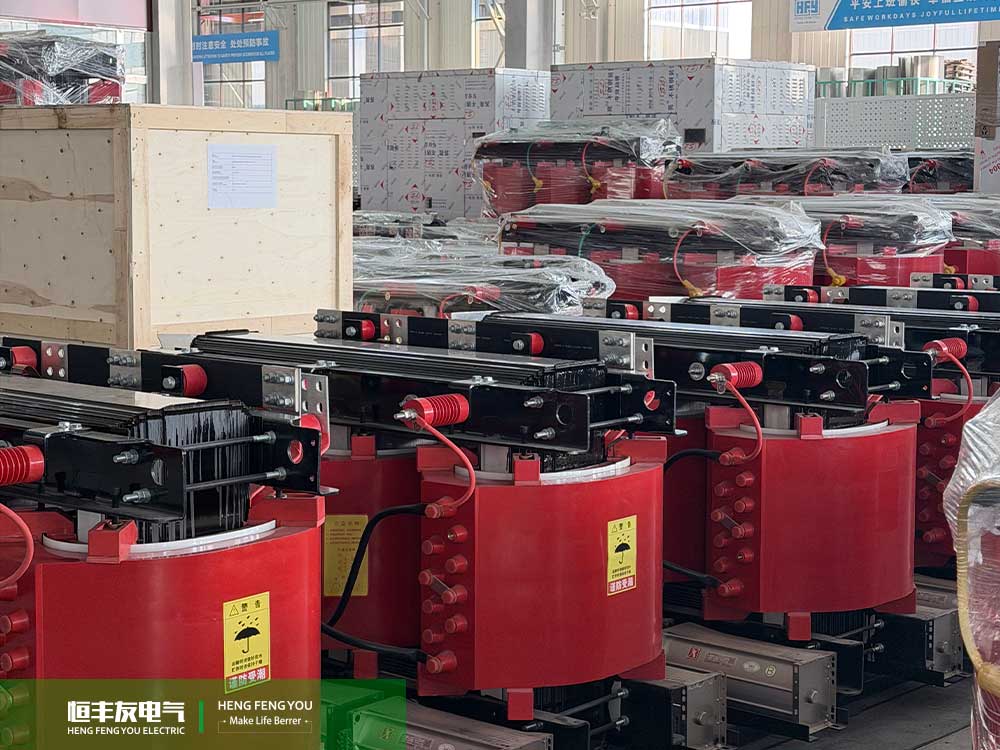

US Industrial Plant 7.5 kVA 13.8 kV Control Power Transformer, Full North American UL/CSA Certification, Cast Resin Vacuum-Impregnated Dry-Type Medium-Voltage Transformer

III. Core Competitive Advantages of Hengfengyou Dry-Type CPT Solution
Procuring equipment for US localized industrial distribution projects or handling orders for overseas EPC contractors generally faces three bottleneck challenges: first, the lack of complete UL/CSA/NRTL listings prevents compliance approval by local safety inspectors and utilities; second, conventional open-ventilated dry-type windings easily accumulate dust and moisture, leading to catastrophic burnouts under short-circuit stress; third, small-scale manufacturers rely on non-standard terminals and aluminum windings, causing full-load temperature rises to overshoot limits and triggering frequent operational faults.
This batch customization project of 300 units bridges high compliance thresholds, extreme-condition reliability, and bulk procurement cost-efficiency. Its four core advantages are as follows:
1. Comprehensive North American Access Credentials to Eliminate Compliance Barriers
Most domestic medium-voltage control transformers on the market hold only a single UL component recognition, lacking the dual-region CSA and NRTL certifications, which creates immense friction during import customs clearance and facility safety sign-offs. This batch of equipment is entirely UL Listed and NRTL certified for both the US and Canadian markets, simultaneously complying with the CSA C22.2 and UL 5085 series standards. The complete set of certification documents is dispatched with the goods. End-users do not need to pay extra for third-party testing, which significantly condenses the project acceptance timeline and hedges against compliance-driven returns.
2. Epoxy Cast Resin Vacuum-Impregnated Copper Windings to Prevent Moisture and Short-Circuit Hazards
The windings adopt a seamless vacuum epoxy resin casting process, completely isolating moisture, dust, and corrosive industrial gases. Compared with traditional open dry-type transformers, its mechanical resistance against electrodynamic short-circuit forces is substantially enhanced. Utilizing 100% pure copper conductors for both high and low-voltage windings guarantees low losses and stabilizes the full-load temperature rise well within the strict 80°C limit. It supports continuous 100% rated capacity operation, eliminating control enclosure shutdowns and assembly line downtime losses caused by thermal overload.
3. American Standard Structural Design Tailored to US Construction Habits
All wiring terminals utilize North American standardized Imperial brass thread specifications: the primary side features 1/4-20 brass screws, while the secondary side uses 1/2-13 brass bolts, equipped with original factory copper bridge jumpers for series-parallel configurations to ease multi-unit parallel capacity scaling. The complete unit features a galvanized anti-corrosion frame, an integrated heavy-duty base, and standardized lifting holes perfectly matched to the internal mounting layouts of standard North American control enclosures, drastically improving on-site rigging, hoisting, and wiring efficiency.
4. Rapid Delivery via Flexible Digital Production Lines for Volume Orders
A one-time procurement of 300 units constitutes a high-volume bundled engineering package. Relying on our digitalized, flexible dry-type transformer production lines, production scheduling is accelerated immediately upon parameter confirmation. Windings casting, hardware assembly, and high-voltage type testing are executed in parallel, rendering the batch manufacturing and delivery cycle highly predictable. High-volume, standardized production dilutes the manufacturing cost per unit, providing clients with a highly economical complete package while strictly satisfying all high-voltage testing and certification matrices.
IV. Export Packaging, Cross-Border Ocean Freight, and On-Site Delivery Assurance for US Industrial Plants
1. Reinforced Ocean Export Protective Packaging
The equipment utilizes specialized protective packaging designed for long-distance ocean freight: the bottom of each transformer is bolted and locked onto a steel load-bearing pallet to eliminate shifting during transit. The entire unit is wrapped in multiple layers of vacuum moisture-proof film, with high-capacity industrial desiccant bags placed inside. The exterior is enclosed in thickened, fumigation-free export wooden crates, ensuring comprehensive protection against moisture, vibration, and marine salt-spray corrosion. Each unit is individually labeled with its unique product serial number, certification ID, and electrical parameters to streamline US port customs clearance and on-site warehouse inventory management.
2. Localized Project Delivery Outcomes
The 300 sets of complete assemblies successfully completed US port customs clearance and were delivered on schedule to the industrial park’s distribution retrofit site. Our team provided comprehensive bilingual technical dossiers, complete certification files, and factory high-voltage test reports. We collaborated with the client's US electrical engineers to execute static inspections, insulation re-testing, secondary circuit wiring, and grid-connection SAT (Site Acceptance Test) handover protocols.
All equipment achieved flawless, one-time energization. Post-commissioning, the equipment runs with ultra-low noise, and metrics for oil temperature (where applicable), winding temperature rise, and insulation resistance remain stable and optimal under prolonged full-load operations. It continuously delivers a rock-solid 120V isolated control power supply for automated assembly lines, MV distribution room instruments, and protective relays, earning unanimous acclaim from the US owner and the EPC general contractor.
V. Solution Summary
The successful deployment of this 300-unit 7.5 kVA 13.8 kV epoxy cast resin single-phase dry-type control power transformer package for the US industrial park underscores Hengfengyou Electric’s integrated capability in bespoke customization, compliance certification, volume delivery, and extreme-condition adaptation for North American distribution projects. Engineered for US 60 Hz medium-voltage industrial distribution scenarios, the product leverages vacuum cast moisture-proof and short-circuit resistant structures, 100% copper low-loss windings, full UL/CSA/NRTL North American credentials, and American-standard integrated structural architecture to thoroughly solve core client pain points regarding certification bottlenecks, equipment vulnerability, and poor construction compatibility.
Deeply rooted in power transmission and distribution equipment manufacturing for over three decades, Hengfengyou Electric exports to more than 50 countries worldwide. We can precisely match full UL, CSA, and IEEE standard matrices for the US and Canadian markets, customizing single-phase/three-phase, dry-type/oil-immersed medium and low-voltage distribution and control transformer packages to supply high-value, highly reliable, one-stop, full-lifecycle power solutions for overseas industrial plants, substations, and renewable energy facilities.
